BD711 Datasheet - STMicroelectronics

BD711 COMPLEMENTARY SILICON POWER TRANSISTORS

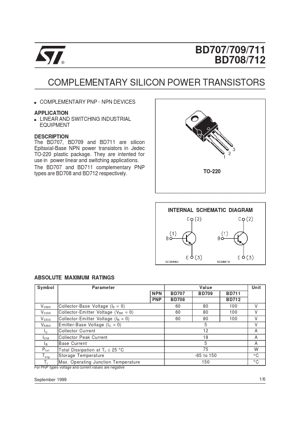

The BD707, BD709 and BD711 are silicon Epitaxial-Base NPN power transistors in Jedec TO-220 plastic package. They are intented for use in power linear and switching applications. The BD707 and BD711 complementary PNP types are BD708 and BD712 respectively. 1 2 3 TO-220 INTERNAL SCHEMATIC DIAGRA.

BD711_STMicroelectronics.pdf

Preview of BD711 PDF
BD711 Datasheet Preview Page 2 BD711 Datasheet Preview Page 3

Datasheet Details

Part number:

BD711

Manufacturer:

STMicroelectronics ↗

File Size:

97.74 KB

Description:

Complementary silicon power transistors.
