D20NF06

N-channel Power MOSFET

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor UMW STD20NF06L TO-252 MOSFETS ROHS DigiKey 2606 1000 units
$0.43

D20NF06 Datasheet (396.46 KB)

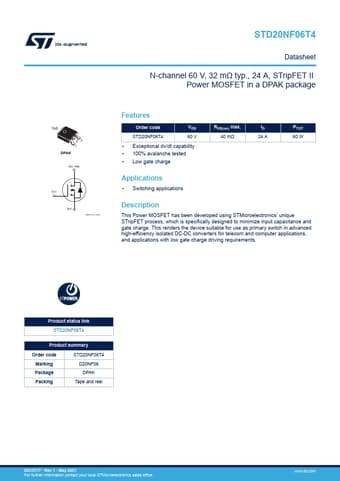

Preview of D20NF06 PDF

Datasheet Details

Part number:

D20NF06

Manufacturer:

STMicroelectronics ↗

File Size:

396.46 KB

Description:

N-channel power mosfet.
STD20NF06T4 Datasheet N-channel 60 V, 32 mΩ typ., 24 A, STripFET II Power MOSFET in a DPAK package TAB 23 1 DPAK D(2, TAB) G(1) S(3) AM01475v1_noZ.

D20NF06 Features

* Order code VDS RDS(on) max. ID STD20NF06T4 60 V 40 mΩ 24 A

* Exceptional dv/dt capability

* 100% avalanche tested

* Low gate charge PTOT 60 W Applications

* Switching applications Description This Power MOSFET has been developed using STMicroelectronics' u

D20NF06 General Description

This Power MOSFET has been developed using STMicroelectronics' unique STripFET process, which is specifically designed to minimize input capacitance and gate charge. This renders the device suitable for use as primary switch in advanced high-efficiency isolated DC-DC converters for telecom and compu.
