D20N06E

N-CHANNEL Power MOSFET

D20N06E General Description

The D20N06E is the highest performance trench N-ch MOSFETs with extreme high cell density, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications. The D20N06E meet the RoHS and Green product requirement,100% EAS guaranteed with full function reliabilit.

D20N06E Datasheet (461.93 KB)

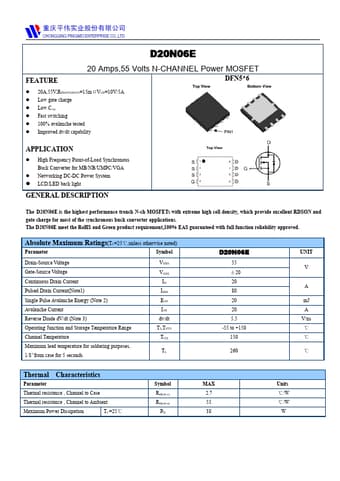

Preview of D20N06E PDF

Datasheet Details

Part number:

D20N06E

Manufacturer:

CHONGQING PINGYANG ELECTRONICS

File Size:

461.93 KB

Description:

N-channel power mosfet.
