DCP3601 36V 1A synchronous step-down converter

📥 Download Datasheet Datasheet Preview Page 1

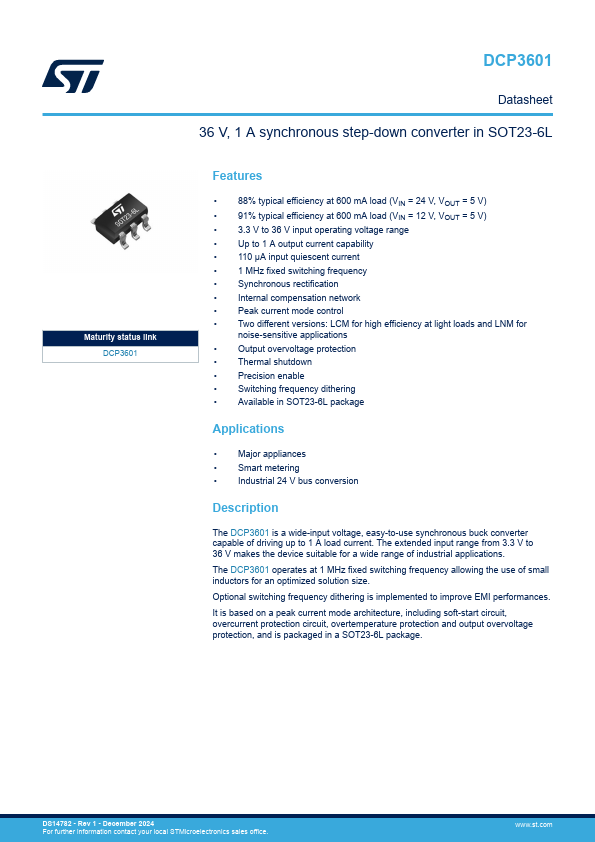

Description

Maturity status link DCP3601 DCP3601 Datasheet 36 V, 1 A synchronous step-down converter in SOT23-6L .
The DCP3601 is a wide-input voltage, easy-to-use synchronous buck converter capable of driving up to 1 A load current.

📥 Download Datasheet

Preview of DCP3601 PDF

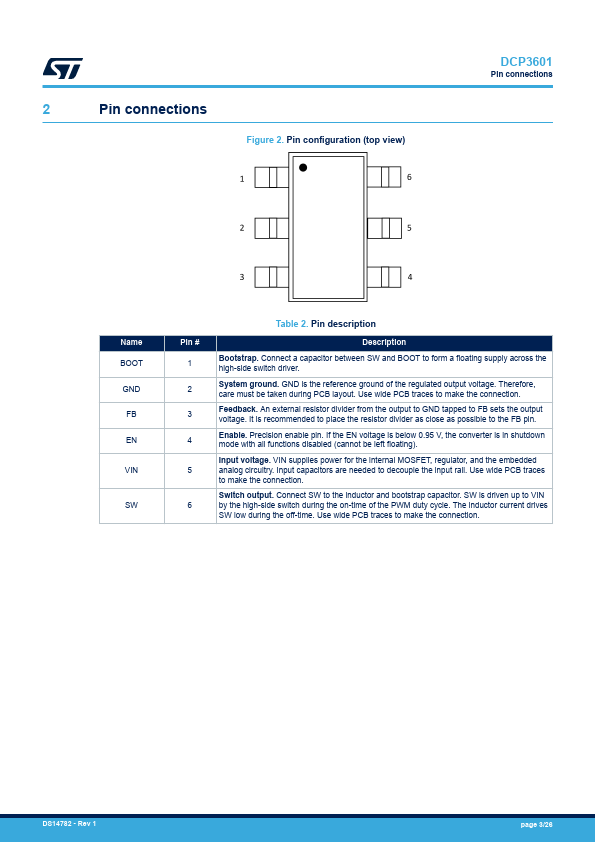

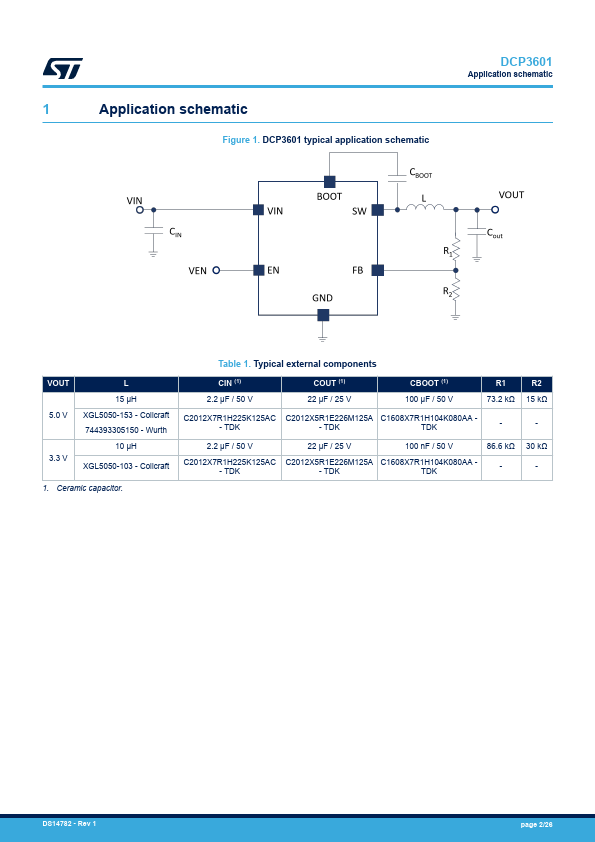

datasheet Preview Page 2 datasheet Preview Page 3

Features

* 88% typical efficiency at 600 mA load (VIN = 24 V, VOUT = 5 V)
* 91% typical efficiency at 600 mA load (VIN = 12 V, VOUT = 5 V)
* 3.3 V to 36 V input operating voltage range
* Up to 1 A output current capability
* 110 μA input quiescent current

Applications

* Output overvoltage protection
* Thermal shutdown
* Precision enable
* Switching frequency dithering
* Available in SOT23-6L package Applications
* Major appliances
* Smart metering
