DCP0606Y Automotive 6V - 6A step-down converter

📥 Download Datasheet  Datasheet Preview Page 1

Description

Maturity status link DCP0606Y DCP0606Y Datasheet Automotive 6 V - 6 A step-down converter .
The DCP0606Y is a high efficiency monolithic step-down synchronous switching regulator designed to deliver up to 6 A continuous current.

📥 Download Datasheet

Preview of DCP0606Y PDF

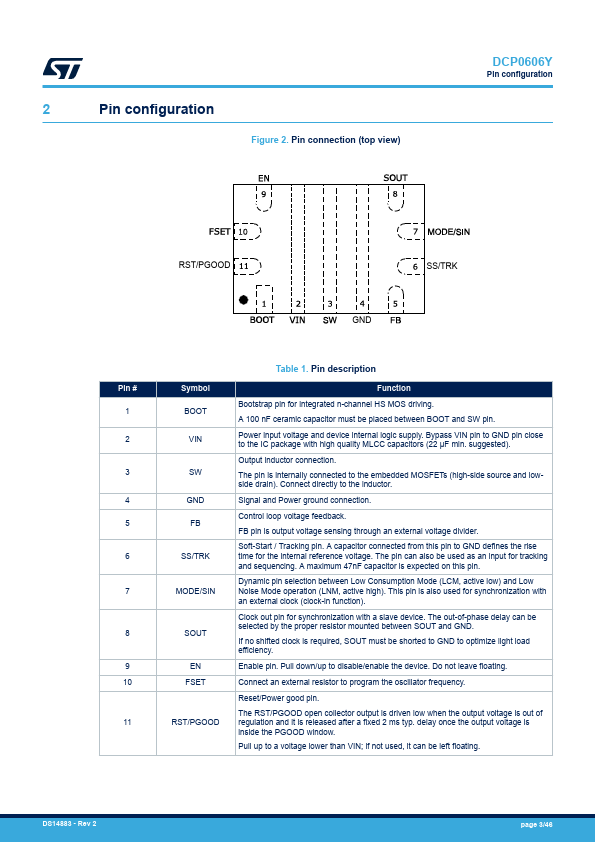

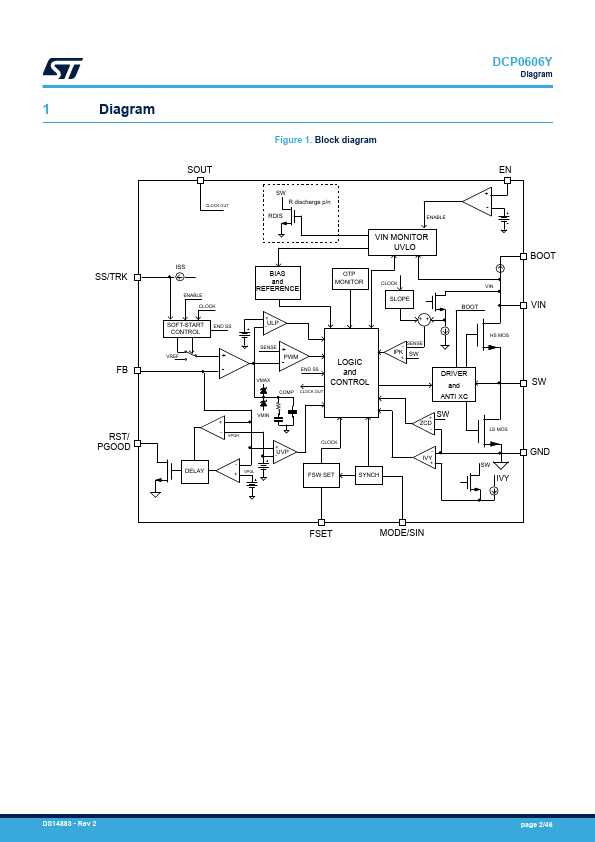

datasheet Preview Page 2 datasheet Preview Page 3

Features

* AEC-Q100 Grade 1 qualified
* Operating junction temperature range: -40 °C to +150 °C
* Designed for 3.3 V and 5 V power rails
* 6 A continuous output current
* 6 A typical efficiency = 93% @ fsw = 2.25 MHz, Vin = 5 V, Vout = 3.3 V
* Integrated 11 mΩ

Applications

* High current low voltage post regulation
* Telematics, HUD, Infotainment, Multimedia and Camera Digital Core power supply
