DTV56, CRT HORIZONTAL DEFLECTION HIGH VOLTAGE DAMPER DIODE

® DTVseries (CRT HORIZONTAL DEFLECTION) HIGH VOLTAGE DAMPER DIODE MAIN PRODUCTS CHARACTERISTICS IF(AV) VRRM VF 5 A to 10 A 1500 V 1.3 V to 1.5 V A .
High voltage diode with high current capability dedicated to horizontal deflection.

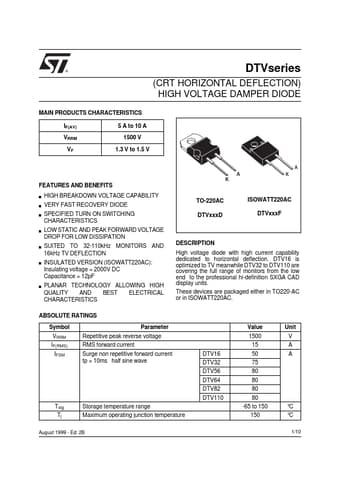

DTV56_STMicroelectronics.pdf

DTV56 Datasheet Preview — Preview of DTV56 PDF

Datasheet Details

Part number:

DTV56

Manufacturer:

STMicroelectronics ↗

File Size:

141.32 KB

Description:

CRT HORIZONTAL DEFLECTION HIGH VOLTAGE DAMPER DIODE

Features

* HIGH BREAKDOWN VOLTAGE CAPABILITY VERY FAST RECOVERY DIODE SPECIFIED TURN ON SWITCHING CHARACTERISTICS LOW STATIC AND PEAK FORWARD VOLTAGE DROP FOR LOW DISSIPATION SUITED TO 32-110kHz MONITORS AND 16kHz TV DEFLECTION INSULATED VERSION (ISOWATT220AC): Insulating voltage = 2000V DC Capacitance = 12pF
