DTV110 CRT HORIZONTAL DEFLECTION HIGH VOLTAGE DAMPER DIODE

High voltage diode with high current capability dedicated to horizontal deflection. DTV16 is optimized to TV meanwhile DTV32 to DTV110 are covering the full range of monitors from the low end to the professional hi-definition SXGA CAD display units. These devices are packaged either in TO220-AC or i.

DTV110 Features

* HIGH BREAKDOWN VOLTAGE CAPABILITY VERY FAST RECOVERY DIODE SPECIFIED TURN ON SWITCHING CHARACTERISTICS LOW STATIC AND PEAK FORWARD VOLTAGE DROP FOR LOW DISSIPATION SUITED TO 32-110kHz MONITORS AND 16kHz TV DEFLECTION INSULATED VERSION (ISOWATT220AC): Insulating voltage = 2000V DC Capacitance = 12pF

DTV110 Datasheet (141.32 KB)

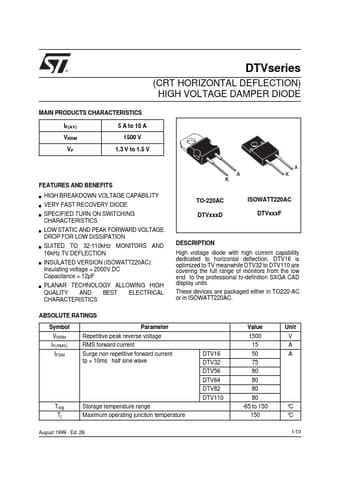

DTV110 Datasheet Preview — Preview of DTV110 PDF

Datasheet Details

Part number:

DTV110

Manufacturer:

STMicroelectronics ↗

File Size:

141.32 KB

Description:

Crt horizontal deflection high voltage damper diode.
