DTV56F, DTV56 High Voltage Damper Diodes

Vishay Siliconix

Description

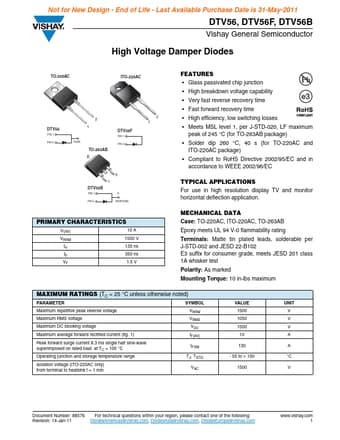

www.DataSheet.co.kr Not for New Design - End of Life - Last Available Purchase Date is 31-May-2011 DTV56, DTV56F, DTV56B Vishay General Semiconducto.

📥 Download Datasheet

DTV56F Datasheet Preview — This datasheet PDF includes multiple part numbers: DTV56F, DTV56. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: DTV56F, DTV56
Manufacturer: Vishay ↗ Siliconix
File Size: 184.12 KB
Datasheet: DTV56_VishaySiliconix.pdf
Description: High Voltage Damper Diodes
Note: This datasheet PDF includes multiple part numbers: DTV56F, DTV56.
Please refer to the document for exact specifications by model.

Features

* Glass passivated chip junction
* High breakdown voltage capability
* Very fast reverse recovery time
* Fast forward recovery time 2 1 2 DTV56 PIN 1 PIN 2
* High efficiency, low switching losses
* Meets MSL level 1, per J-STD-020, LF maximum peak of

Applications

* For use in high resolution display TV and monitor horizontal deflection application. MECHANICAL DATA PRIMARY CHARACTERISTICS IF(AV) VRRM trr tfr VF 10 A 1500 V 135 ns 350 ns 1.5 V Case: TO-220AC, ITO-220AC, TO-263AB Epoxy meets UL 94 V-0 flammability rating Terminals: Matte tin plated leads, solde
