DTV1500HF

CRT HORIZONTAL DEFLECTION HIGH VOLTAGE DAMPER DIODE

DTV1500HF Features

* High breakdown voltage capability High frequency operation Specified turn on switching characteristics Very fast recovery diode Low static and peak forward voltage drop for low dissipation Insulated package (ISOWATT220AC & TO-220FPAC): Insulating voltage = 2000V DC Capacitance = 12pF Planar technolo

DTV1500HF General Description

High voltage diode especially designed for horizontal deflection stage in standard and high resolution displays for TV’s and monitors. This device is packaged in TO-220AC, ISOWATT220AC and TO-220FPAC (insulated package). ABSOLUTE MAXIMUM RATINGS Symbol VRRM IF(RMS) IFSM Tstg Tj Parameter Repetitive .

DTV1500HF Datasheet (89.88 KB)

Preview of DTV1500HF PDF

Datasheet Details

Part number:

DTV1500HF

Manufacturer:

STMicroelectronics ↗

File Size:

89.88 KB

Description:

Crt horizontal deflection high voltage damper diode.

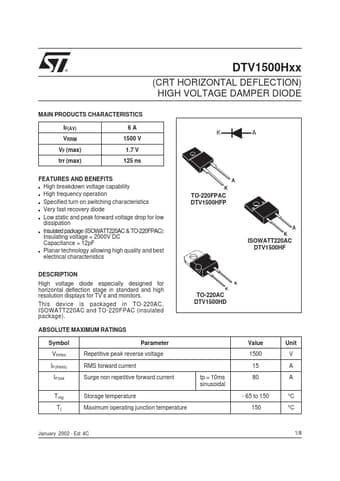

® DTV1500Hxx (CRT HORIZONTAL DEFLECTION) HIGH VOLTAGE DAMPER DIODE MAIN PRODUCTS CHARACTERISTICS IF(AV) VRRM VF (max) trr (max) 6A 1500 V 1.7 V 125 .
