DVIULC6-2M6

Ultra low capacitance ESD protection

DVIULC6-2M6 Features

* 2-line ESD protection (at 15 kV air and contact discharge, exceeds IEC 61000-4-2)

* Protects VBUS when applicable

* Ultra low capacitance: 0.6 pF at F = 825 MHz

* Fast response time compared with varistors

* Low leakage current: 0.5 µA max

* RoHS com

DVIULC6-2M6 General Description

The DVIULC6-2M6 is a monolithic, application specific discrete device dedicated to ESD protection of high speed interfaces, such as DVI, IEEE 1394a, b and c, USB2.0, Ethernet links and video lines. Its ultra low line capacitance secures a high level of signal integrity without compromising in protec.

DVIULC6-2M6 Datasheet (366.13 KB)

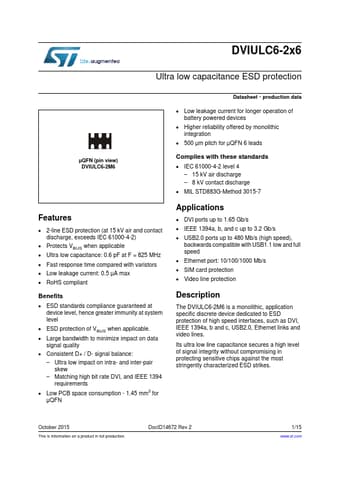

Preview of DVIULC6-2M6 PDF

Datasheet Details

Part number:

DVIULC6-2M6

Manufacturer:

STMicroelectronics ↗

File Size:

366.13 KB

Description:

Ultra low capacitance esd protection.
