ESDA6V1-4F1 Datasheet - STMicroelectronics

ESDA6V1-4F1 - QUAD TRANSIL ARRAY

The ESDA6V1-4F1 is a 4-bit wide monolithic suppressor designed to protect against ESD components which are connected to data and transmission lines.

It clamps the voltage just above the logic level supply for positive transients, and to a diode forward voltage drop below ground for negative transien

ESDA6V1-4F1 Features

* s s Flip Chip (Bump side) FUNCTIONAL DIAGRAM A3 A2 A1 s s 4 Unirectional transil functions Breakdown voltage: VBR = 6.1Vmin Low leakage current < 10 µA Very low PCB space consuming BENEFITS s s s > ± 15kV ESD Protection High integration Suitable for high density boards B3 B2 B1 ESD RE

ESDA6V1-4F1_STMicroelectronics.pdf

Preview of ESDA6V1-4F1 PDF

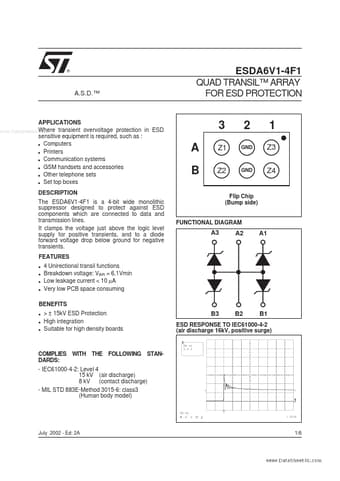

ESDA6V1-4F1 Datasheet Preview Page 2 ESDA6V1-4F1 Datasheet Preview Page 3
