ESDA6V8AV5 - Small Power TVS

ESDA6V8AV5 Description

ESDA6V8AV5 4-Line, Low-Capacitor, Uni-directional Transient Voltage Suppressors .
The ESDA6V8AV5 is a transient voltage suppressors (TVS) which provide a very high level protection for sensitive electronic components that may be su.

ESDA6V8AV5 Features

* z Working voltage z Peak power (tp=8/20us) z ESD protection IEC61000-4-2 (Contact) IEC61000-4-2 (Air) z Low leakage current z Small package : 5V : 36W : ±8KV : ±15KV ESDA6V8AV5 Http//:www. willsemi. com SOT-553 I/O4 I/O3 54 123 I/O1 GND I/O2 Pin configuration (Top view) 54 6H 123 6H = Dev

ESDA6V8AV5 Applications

* such as mobile phone, notebook, PAD, STB, LCD TV etc. The ESDA6V8AV5 was past ESD transient voltage up to ±8KV (contact) according to IEC61000-4-2 and withstand peak current up to 3A for 8/20us pulse according to IEC61000-4-5. The ESDA6V8AV5 is available in SOT-553 package. Standard products are Pb-

📥 Download Datasheet

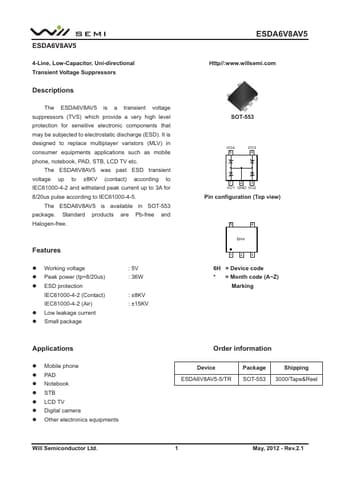

Preview of ESDA6V8AV5 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ESDA6V8AV5
Manufacturer
WillSEMI
File Size
65.34 KB
Datasheet
ESDA6V8AV5-WillSEMI.pdf
Description
Small Power TVS
