GP10NB37LZ - internally clamped IGBT

Datasheet Summary

Description

This IGBT utilizes the advanced PowerMESH™ process resulting in an excellent trade-off between switching performance and low on-state behavior.

The built in collector-gate Zener exhibits a very precise active clamping while the gateemitter Zener supplies an ESD protection.

Features

  • Low threshold voltage.
  • Low on-voltage drop.
  • Low gate charge.
  • High current capability.
  • High voltage clamping feature.

📥 Download Datasheet

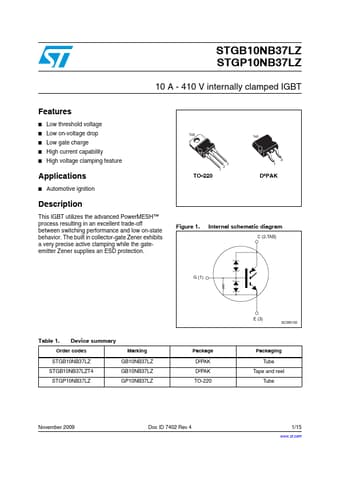

Datasheet preview – GP10NB37LZ

Datasheet Details

Part number GP10NB37LZ
Manufacturer STMicroelectronics
File Size 726.68 KB
Description internally clamped IGBT
Datasheet download datasheet GP10NB37LZ Datasheet
Additional preview pages of the GP10NB37LZ datasheet.

📁 Similar Datasheet

  • GP10N - GLASS PASSIVATED JUNCTION RECTIFIER (General Semiconductor)
  • GP10N - SINTERED GLASS PASSIVATED JUNCTION RECTIFIER (Zowie Technology Corporation)
  • GP10N - Glass Passivated Junction Rectifiers (GOOD-ARK)
  • GP10N - Glass Passivated Junction Rectifier (Vishay Siliconix)
  • GP10N - GLASS PASSIVATED JUNCTION SILICON RECTIFIERS (EIC)
  • GP10 - Paperless Recorder (Yokogawa)
  • GP10-4002 - Glass Passivated Junction Plastic Rectifier (Vishay)
  • GP10-4003 - Glass Passivated Junction Plastic Rectifier (Vishay)
  • GP10-4004 - Glass Passivated Junction Plastic Rectifier (Vishay)
  • GP10-4005 - Glass Passivated Junction Plastic Rectifier (Vishay)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
STGB10NB37LZ STGP10NB37LZ 10 A - 410 V internally clamped IGBT Features ■ Low threshold voltage ■ Low on-voltage drop ■ Low gate charge ■ High current capability ■ High voltage clamping feature Applications ■ Automotive ignition Description This IGBT utilizes the advanced PowerMESH™ process resulting in an excellent trade-off between switching performance and low on-state behavior. The built in collector-gate Zener exhibits a very precise active clamping while the gateemitter Zener supplies an ESD protection. TAB 3 2 1 TO-220 TAB 3 1 D²PAK Figure 1. Internal schematic diagram C (2,TAB) G (1) Table 1.
