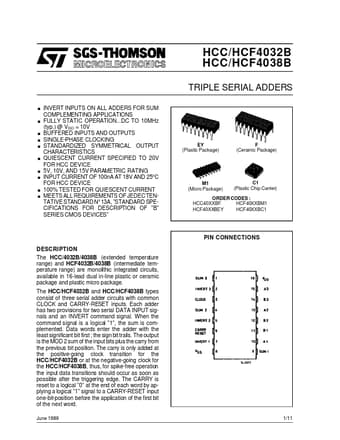

HCF4032B TRIPLE SERIAL ADDERS

OF ”B” SERIES CMOS DEVICES” EY (Plastic Package) F (Ceramic Package) M1 (Micro Package) C1 (Plastic Chip Carrier) ORDER CODES : HCC40XXBF HCF40XXBM1 HCF40XXBEY HCF40XXBC1 PIN CONNECTIONS DESCRIPTION The HCC/4032B/4038B (extended temperature range) and HCF4032B/4038B (intermediate temperature r.

HCC/HCF4032B HCC/HCF4038B TRIPLE SERIAL ADDERS . . . . . . . . . . INVERT INPUTS ON ALL ADDERS FOR SUM COMPLEMENTING APPLICATIONS FULLY STATIC OPERATIONDC TO 10MHz (typ.) @ VDD = 10V BUFFERED INPUTS AND OUTPUTS SINGLE-PHASE CLOCKING STANDARDIZED SYMMETRICAL OUTPUT CHARACTERISTICS QUIESCENT CURRENT SPECIFIED TO 20V FOR HCC DEVICE 5V, 10V, AND 15V PARAMETRIC RATING INPUT CURRENT OF 100nA AT 18V AND 25°C FOR HCC DEVICE 100% TESTED FOR QUIESCENT CURRENT MEETS ALL REQUIREMENTS OF JEDEC TENTATIVE ST.
