HCF4033B 7-SEGMENT DISPLAY OUTPUTS DECADE COUNTERS/DIVIDERS WITH DECODED

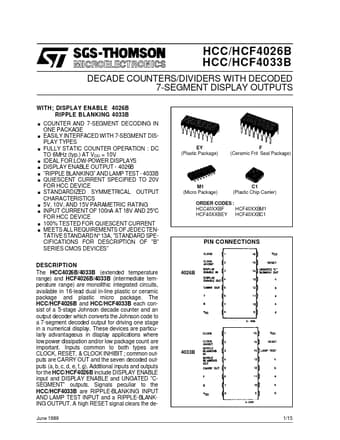

OF ”B” SERIES CMOS DEVICES” EY (Plastic Package) F (Ceramic Frit Seal Package) M1 (Micro Package) C1 (Plastic Chip Carrier) ORDER CODES : HCC40XXBF HCF40XXBM1 HCF40XXBEY HCF40XXBC1 PIN CONNECTIONS DESCRIPTION The HCC4026B/4033B (extended temperature range) and HCF4026B/4033B (intermediate tem.

HCC/HCF4026B HCC/HCF4033B DECADE COUNTERS/DIVIDERS WITH DECODED 7-SEGMENT DISPLAY OUTPUTS . . . . . . . . . . . . WITH; DISPLAY ENABLE 4026B RIPPLE BLANKING 4033B COUNTER AND 7-SEGMENT DECODING IN ONE PACKAGE EASILY INTERFACED WITH 7-SEGMENT DISPLAY TYPES FULLY STATIC COUNTER OPERATION : DC TO 6MHz (typ.) AT VDD = 10V IDEAL FOR LOW-POWER DISPLAYS DISPLAY ENABLE OUTPUT - 4026B ”RIPPLE BLANKING” AND LAMP TEST - 4033B QUIESCENT CURRENT SPECIFIED TO 20V FOR HCC DEVICE STANDARDIZED SYMMETRICAL OUTP.

HCF4033B Features

* Filament Fluorescent Display. Detail of Typical Flip-flop Stage for Both Types. 8/15 HCC/HCF4026B/4033B TYPICAL APPLICATIONS (continued) Interfacing with LED Displays (display common anode). (Display Common Cathode). Interfa
