HSP053-4M5 - 4-line ESD protection

Product Overview

STMicroelectronics

Datasheet Details

Part number	HSP053-4M5
Manufacturer	STMicroelectronics
File Size	2.32 MB
Description	4-line ESD protection
Datasheet	HSP053-4M5 Datasheet

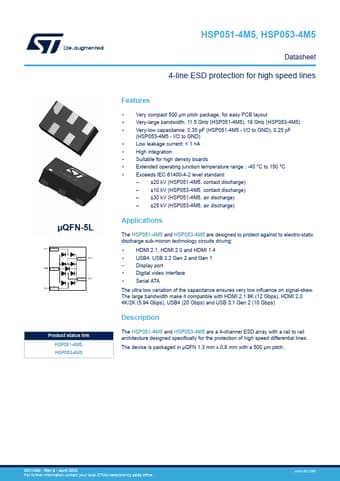

Additional preview pages of the HSP053-4M5 datasheet.

Product details

Description

The HSP051-4M5 and HSP053-4M5 are a 4-channel ESD array with a rail to rail architecture designed specifically for the protection of high speed differential lines.

Features

Very compact 500 µm pitch package, for easy PCB layout.
Very-large bandwidth: 11.5 GHz (HSP051-4M5), 18 GHz (HSP053-4M5).
Very-low capacitance: 0.35 pF (HSP051-4M5 - I/O to GND), 0.25 pF (HSP053-4M5 - I/O to GND).
Low leakage current: < 1 nA.
High integration.
Suitable for high density boards.
Extended operating junction temperature range : -40 °C to 150 °C.
Exceeds IEC 61400-4-2 level standard:.
±20 kV (HSP051-4M5.
