IPN2M50-H SLLIMM-nano small low-loss intelligent molded module IPM

This SLLIMM (small low-loss intelligent molded module) nano provides a compact, high performance AC motor drive in a simple, rugged design. It is composed of six MOSFETs and three half-bridge HVICs for gate driving, providing low electromagnetic interference (EMI) characteristics with optimized swit.

IPN2M50-H Features

* IPM 2 A, 500 V, RDS(on) = 1.7 Ω, 3-phase MOSFET inverter bridge including control ICs for gate driving

* Optimized for low electromagnetic interference

* 3.3 V, 5 V, 15 V CMOS/TTL input comparators with hysteresis and pulldown/pull-up resistors

* Undervoltage lockout

* Internal

IPN2M50-H-STMicroelectronics.pdf

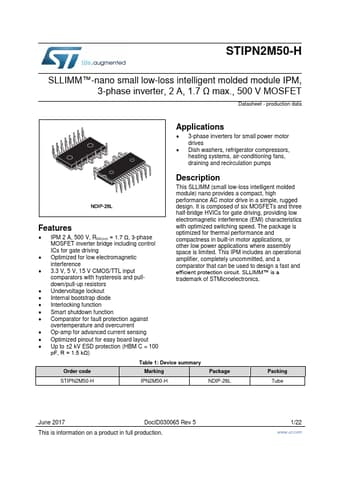

IPN2M50-H Datasheet Preview — Preview of IPN2M50-H PDF

Datasheet Details

Part number:

IPN2M50-H

Manufacturer:

STMicroelectronics ↗

File Size:

0.97 MB

Description:

Sllimm-nano small low-loss intelligent molded module ipm.
