IPN2M50T-HL

SLLIMM-nano small low-loss intelligent molded module IPM

IPN2M50T-HL Features

* IPM 2 A, 500 V, RDS(on) = 1.7 Ω, 3-phase MOSFET inverter bridge including control ICs for gate driving

* Optimized for low electromagnetic interference

* 3.3 V, 5 V, 15 V CMOS/TTL input comparators with hysteresis and pulldown/pull-up resistors

* Undervoltage lockout

* Internal

IPN2M50T-HL General Description

This SLLIMM (small low-loss intelligent molded module) nano provides a compact, high performance AC motor drive in a simple, rugged design. It is composed of six MOSFETs and three half-bridge HVICs for gate driving, providing low electromagnetic interference (EMI) characteristics with optimized swit.

IPN2M50T-HL Datasheet (0.97 MB)

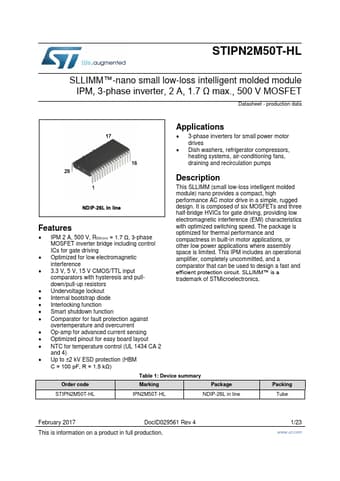

Preview of IPN2M50T-HL PDF

Datasheet Details

Part number:

IPN2M50T-HL

Manufacturer:

STMicroelectronics ↗

File Size:

0.97 MB

Description:

Sllimm-nano small low-loss intelligent molded module ipm.
STIPN2M50T-HL SLLIMM™-nano small low-loss intelligent molded module IPM, 3-phase inverter, 2 A, 1.7 Ω max., 500 V MOSFET Datasheet - production data .
