IRF640 - N-Channel MOSFET

Description

This power MOSFET is designed using he company’s consolidated strip layout-based MESH OVERLAY™ process.

This technology matches and improves the performances compared with standard parts from various sources.

📥 Download Datasheet

📁 Similar Datasheet

  • IRF640 - N-channel TrenchMOS transistor (NXP)
  • IRF640 - Power MOSFET (International Rectifier)
  • IRF640 - 200V N-Channel MOSFET (Fairchild Semiconductor)
  • IRF640 - N-Channel Enhancement Mode Power MOS Transistors (Comset Semiconductors)
  • IRF640 - Power MOSFET (Vishay)
  • IRF640 - N-CHANNEL MOSFET (BLUE ROCKET ELECTRONICS)
  • IRF640 - N-Channel Power MOSFET (nELL)
  • IRF640 - N-Channel Enhancement Mode POWER MOSFET (WEITRON)
  • IRF640 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • IRF640A - N-Channel Mosfet Transistor (Inchange Semiconductor)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text

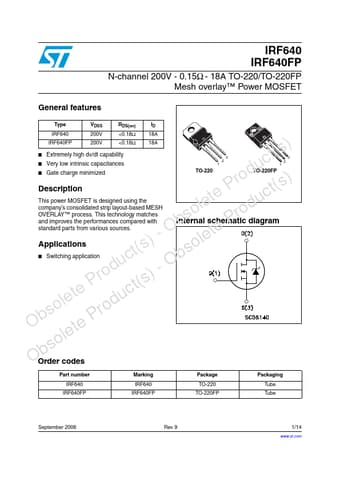

® IRF640 IRF640FP N - CHANNEL 200V - 0.150Ω - 18A TO-220/TO-220FP MESH OVERLAY™ MOSFET TYPE IRF640 IRF640FP s s s s V DSS 200 V 200 V R DS(on) < 0.18 Ω < 0.18 Ω ID 18 A 18 A TYPICAL RDS(on) = 0.150 Ω EXTREMELY HIGH dV/dt CAPABILITY VERY LOW INTRINSIC CAPACITANCES GATE CHARGE MINIMIZED 3 1 2 1 2 3 DESCRIPTION This power MOSFET is designed using he company’s consolidated strip layout-based MESH OVERLAY™ process. This technology matches and improves the performances compared with standard parts from various sources. TO-220 TO-220FP APPLICATIONS s HIGH CURRENT SWITCHING s UNINTERRUPTIBLE POWER SUPPLY (UPS) s DC/DC COVERTERS FOR TELECOM, INDUSTRIAL, AND LIGHTING EQUIPMENT.
