IRFZ40FI, IRFZ40 Datasheet - STMicroelectronics

IRFZ40FI N-CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTORS

IRFZ40 IRFZ40FI N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTORS TYPE IRFZ40 IRFZ40FI VDSS 50 V 50 V R DS( on) < 0.028 Ω < 0.028 Ω ID 50 A 27 A s TYPICAL RDS(on) = 0.022 Ω s AVALANCHE RUGGED TECHNOLOGY s 100% AVALANCHE TESTED s REPETITIVE AVALANCHE DATA AT 100oC s LOW GATE CHARGE s HIGH CURRENT CAPABILITY s 175oC OPERATING TEMPERATURE APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s SOLENOID AND RELAY DRIVERS s REGULATORS s DC-DC & DC-AC CONVERTERS s MOTOR CONTROL, AUDIO AMPLIFIERS s .

IRFZ40_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: IRFZ40FI, IRFZ40. Please refer to the document for exact specifications by model.

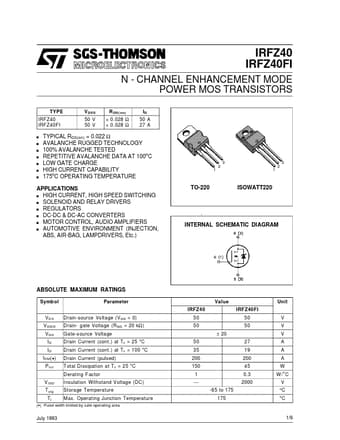

IRFZ40FI Datasheet Preview Page 2 IRFZ40FI Datasheet Preview Page 3

Datasheet Details

Part number:

IRFZ40FI, IRFZ40

Manufacturer:

STMicroelectronics ↗

File Size:

181.68 KB

Description:

N-channel enhancement mode power mos transistors.

Note:

This datasheet PDF includes multiple part numbers: IRFZ40FI, IRFZ40.
Please refer to the document for exact specifications by model.
