ITA10B1

BIDIRECTIONAL TRANSILTM ARRAY FOR DATALINE PROTECTION

ITA10B1 Features

* HIGH SURGE CAPABILITY TRANSIL ARRAY IPP = 40 A (8/20µs) PEAK PULSE POWER : 300 W (8/20µs) UP TO 5 BIDIRECTIONAL TRANSIL FUNCTIONS LOW CLAMPING FACTOR (VCL / VBR) AT HIGH CURRENT LEVEL LOW LEAKAGE CURRENT ESD PROTECTION UP TO 15kV SO8 FUNCTIONAL DIAGRAM DESCRIPTION Transil diode arrays provide high

ITA10B1 General Description

Transil diode arrays provide high overvoltage protectionby clamping action. Their instantaneous response to transient overvoltages makes them particularly suited to protect voltage sensitive devices such as MOS Technology and low voltage supplied IC’s. The ITA series allies high surge capability aga.

ITA10B1 Datasheet (61.73 KB)

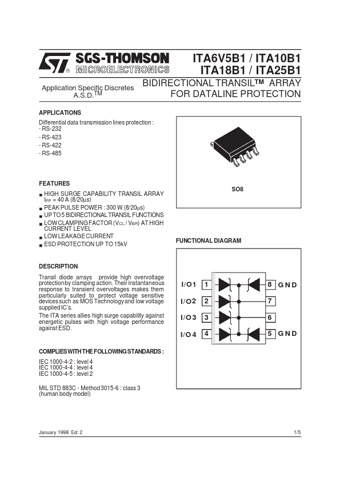

Preview of ITA10B1 PDF

Datasheet Details

Part number:

ITA10B1

Manufacturer:

STMicroelectronics ↗

File Size:

61.73 KB

Description:

Bidirectional transiltm array for dataline protection.
® ITA6V5B1 / ITA10B1 ITA18B1 / ITA25B1 BIDIRECTIONAL TRANSILTM ARRAY FOR DATALINE PROTECTION Application Specific Discretes A.S.D.TM APPLICATIONS D.
