ITA1205S Datasheet - XP Power

ITA1205S DC-DC Converter

ITA Series DC-DC Converter 1 Watt xxx Dual Output Series SIP Package 40 °C to +105 °C Operation Full Load to 95 °C Ambient 1500 VDC Isolation Class B Conducted & Radiated Emissions MTBF >3.5 MHrs 3 Year Warranty Models & Ratings Input Voltage 5V 12 V 24 V Output Voltage ±5 V ±12 V ±15 V ±5 V ±12 V ±15 V ±5 V ±12 V ±15 V Output Current ±100 mA ±41.6 mA ±33.3 mA ±100 mA ±41.6 mA ±33.3 mA ±100 mA ±41.6 mA ±33.3 mA .

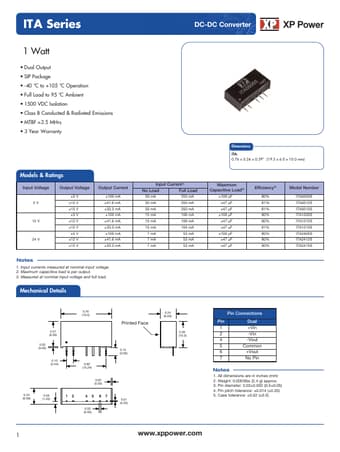

ITA1205S Datasheet (267.72 KB)
