ITA0515S, ITA0505S Datasheet - XP Power

ITA0515S DC-DC Converter

ITA Series DC-DC Converter 1 Watt xxx Dual Output Series SIP Package 40 °C to +105 °C Operation Full Load to 95 °C Ambient 1500 VDC Isolation Class B Conducted & Radiated Emissions MTBF >3.5 MHrs 3 Year Warranty Models & Ratings Input Voltage 5V 12 V 24 V Output Voltage ±5 V ±12 V ±15 V ±5 V ±12 V ±15 V ±5 V ±12 V ±15 V Output Current ±100 mA ±41.6 mA ±33.3 mA ±100 mA ±41.6 mA ±33.3 mA ±100 mA ±41.6 mA ±33.3 mA .

ITA0505S-XPPower.pdf

This datasheet PDF includes multiple part numbers: ITA0515S, ITA0505S. Please refer to the document for exact specifications by model.

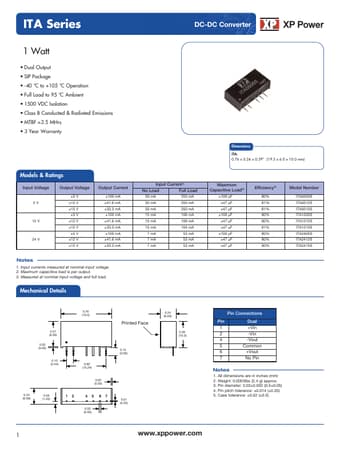

ITA0515S Datasheet Preview Page 2 ITA0515S Datasheet Preview Page 3

Datasheet Details

Part number:

ITA0515S, ITA0505S

Manufacturer:

XP Power

File Size:

267.72 KB

Description:

Dc-dc converter.

Note:

This datasheet PDF includes multiple part numbers: ITA0515S, ITA0505S.
Please refer to the document for exact specifications by model.
