L149

4A LINEAR DRIVER

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Amphenol Aerospace MS3470L14-9P MATRIX 26482 II DigiKey 26 25 units
$48.89

L149 Datasheet (93.07 KB)

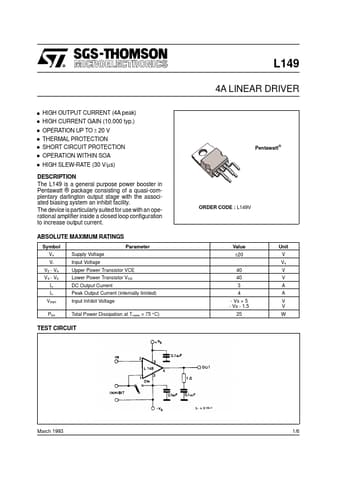

Preview of L149 PDF

Datasheet Details

Part number:

L149

Manufacturer:

STMicroelectronics ↗

File Size:

93.07 KB

Description:

4a linear driver.
L149 4A LINEAR DRIVER HIGH OUTPUT CURRENT (4A peak) HIGH CURRENT GAIN (10.000 typ.) OPERATION UP TO ± 20 V THERMAL PROTECTION SHORT CIRCUIT PROTECTION.

L149 General Description

The L149 is a general purpose power booster in Pentawatt ® package consisting of a quasi-complentary darlington output stage with the associated biasing system an inhibit facility. The device is particularly suited for use with an operational amplifier inside a closed loop configuration to increase .
