L2293Q

Push-pull four channel driver

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part STMicroelectronics L2293Q IC HALF BRIDG DRV 600MA 32VFQFPN DigiKey 5161 2940 units
$2.01

L2293Q Datasheet (179.15 KB)

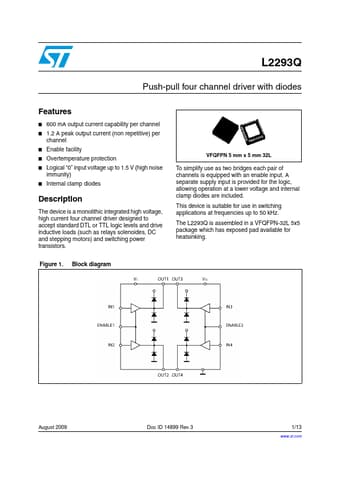

Preview of L2293Q PDF

Datasheet Details

Part number:

L2293Q

Manufacturer:

STMicroelectronics ↗

File Size:

179.15 KB

Description:

Push-pull four channel driver.

L2293Q Features

* 600 mA output current capability per channel

* 1.2 A peak output current (non repetitive) per channel

* Enable facility

* Overtemperature protection

* Logical “0” input voltage up to 1.5 V (high noise immunity)

* Internal clamp diodes Description The device is a monolithic

L2293Q General Description

The device is a monolithic integrated high voltage, high current four channel driver designed to accept standard DTL or TTL logic levels and drive inductive loads (such as relays solenoides, DC and stepping motors) and switching power transistors. VFQFPN 5 mm x 5 mm 32L To simplify use as two bridg.
