L2685

LOW DROPOUT VOLTAGE REGULATORS

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Lite-On Semiconductor Corporation LTL-2685HR LED LGT BAR 19.05X8.89MM RED DigiKey 0 10000 units
$0.67

L2685 Datasheet (79.21 KB)

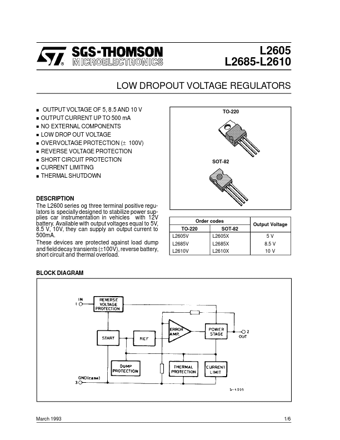

Preview of L2685 PDF

Datasheet Details

Part number:

L2685

Manufacturer:

STMicroelectronics ↗

File Size:

79.21 KB

Description:

Low dropout voltage regulators.
L2605 L2685-L2610 LOW DROPOUT VOLTAGE REGULATORS OUTPUT VOLTAGE OF 5, 8.5 AND 10 V OUTPUT CURRENT UP TO 500 mA NO EXTERNAL COMPONENTS LOW DROP OUT VOL.

L2685 General Description

The L2600 series og three terminal positive regulators is specially designed to stabilize power supplies car instrumentation in vehicles with 12V battery. Available with output voltages equal to 5V, 8.5 V, 10V, they can supply an output current to 500mA. These devices are protected against load dump.
