L4971

1.5A STEP DOWN SWITCHING REGULATOR

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part STMicroelectronics L4971 IC REG BUCK ADJ 1.5A 8DIP DigiKey 1011 5000 units
$1.68

L4971 Datasheet (134.78 KB)

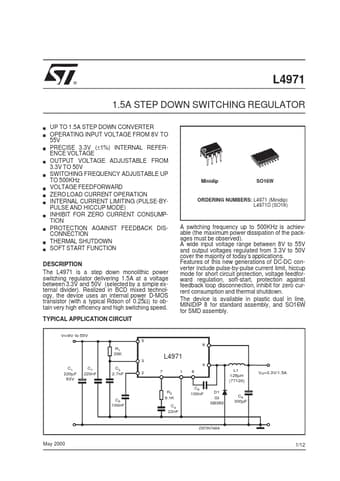

Preview of L4971 PDF

Datasheet Details

Part number:

L4971

Manufacturer:

STMicroelectronics ↗

File Size:

134.78 KB

Description:

1.5a step down switching regulator.
® L4971 1.5A STEP DOWN SWITCHING REGULATOR UP TO 1.5A STEP DOWN CONVERTER OPERATING INPUT VOLTAGE FROM 8V TO 55V PRECISE 3.3V (±1%) INTERNAL REFEREN.

L4971 Features

* of this new generations of DC-DC converter include pulse-by-pulse current limit, hiccup mode for short circuit protection, voltage feedforward regulation, soft-start, protection against feedback loop disconnection, inhibit for zero current consumption and thermal shutdown. The device is available in

L4971 General Description

The L4971 is a step down monolithic power switching regulator delivering 1.5A at a voltage between 3.3V and 50V (selected by a simple external divider). Realized in BCD mixed technology, the device uses an internal power D-MOS transistor (with a typical Rdson of 0.25Ω) to obtain very high efficency .
