L4972A

2A SWITCHING REGULATOR

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part STMicroelectronics L4972A IC REG BUCK ADJ 2A 20POWERDIP DigiKey 0 1000 units
$3.16

L4972A Datasheet (1.33 MB)

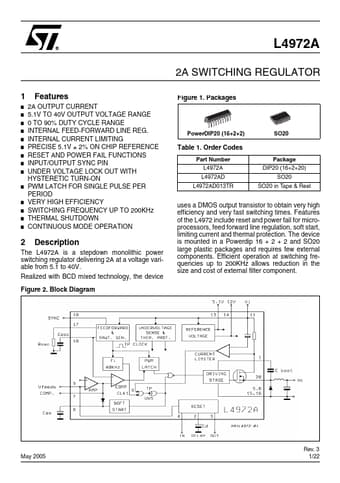

Preview of L4972A PDF

Datasheet Details

Part number:

L4972A

Manufacturer:

STMicroelectronics ↗

File Size:

1.33 MB

Description:

2a switching regulator.

L4972A Features

* 2A OUTPUT CURRENT

* 5.1V TO 40V OUTPUT VOLTAGE RANGE

* 0 TO 90% DUTY CYCLE RANGE

* INTERNAL FEED-FORWARD LINE REG.

* INTERNAL CURRENT LIMITING

* PRECISE 5.1V ± 2% ON CHIP REFERENCE

* RESET AND POWER FAIL FUNCTIONS

* INPUT/OUTPUT SYNC PIN

* UNDER VOLTAGE LOCK OUT

L4972A General Description

The L4972A is a stepdown monolithic power switching regulator delivering 2A at a voltage variable from 5.1 to 40V. Realized with BCD mixed technology, the device Figure 2. Block Diagram Figure 1. Packages PowerDIP20 (16+2+2) Table 1. Order Codes Part Number L4972A L4972AD L4972AD013TR SO20 Packag.
