L5300GJ 5V low drop voltage regulator

L5300GJ is a low dropout linear regulator with microprocessor control functions such as power on reset, low voltage reset, early warning, ON/OFF control. Typical quiescent current is 55 µA in very low output current mode and enabled regulator. It drops to 5 µA with not enabled regulator. On-chip tri.

L5300GJ Features

* Max DC supply voltage VS Max output voltage tolerance V0 Max dropout voltage Vdp Output current I0 Quiescent current Iqn 1. Typical value with regulator disabled. 2. Typical value with regulator enabled. 40 V +/-2% 500 mV 300 mA 5 µA(1) 55 µA(2)

* AEC-Q100 qualified

* Operating

L5300GJ-STMicroelectronics.pdf

Preview of L5300GJ PDF

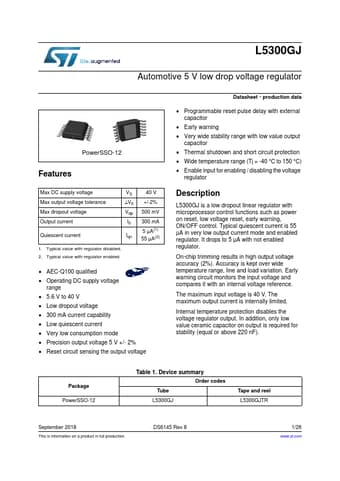

L5300GJ Datasheet Preview Page 2 L5300GJ Datasheet Preview Page 3

Datasheet Details

Part number:

L5300GJ

Manufacturer:

STMicroelectronics ↗

File Size:

587.65 KB

Description:

5v low drop voltage regulator.
