L5300EPT

Automotive 5V low dropout voltage regulator

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part STMicroelectronics L5300EPTTR IC REG LINEAR 5V 300MA PPAK DigiKey 0 7500 units
$0.83

L5300EPT Datasheet (897.61 KB)

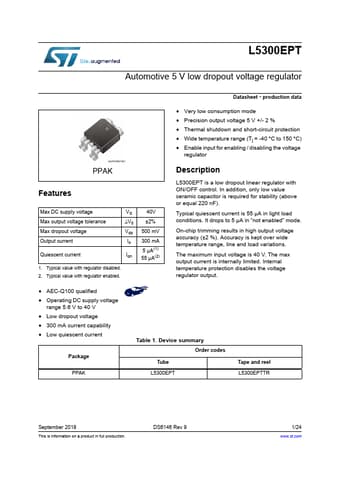

Preview of L5300EPT PDF

Datasheet Details

Part number:

L5300EPT

Manufacturer:

STMicroelectronics ↗

File Size:

897.61 KB

Description:

Automotive 5v low dropout voltage regulator.

L5300EPT Features

* Max DC supply voltage Max output voltage tolerance Max dropout voltage Output current VS V0 Vdp Io Quiescent current Iqn 1. Typical value with regulator disabled. 2. Typical value with regulator enabled. 40V ±2% 500 mV 300 mA 5 µA(1) 55 µA(2) Datasheet - production data

* Very low consum

L5300EPT General Description

L5300EPT is a low dropout linear regulator with ON/OFF control. In addition, only low value ceramic capacitor is required for stability (above or equal 220 nF). Typical quiescent current is 55 µA in light load conditions. It drops to 5 µA in “not enabled” mode. On-chip trimming results in high outpu.
