L6590A

FULLY INTEGRATED POWER SUPPLY

L6590A Datasheet (234.67 KB)

Preview of L6590A PDF

Datasheet Details

Part number:

L6590A

Manufacturer:

STMicroelectronics ↗

File Size:

234.67 KB

Description:

Fully integrated power supply.

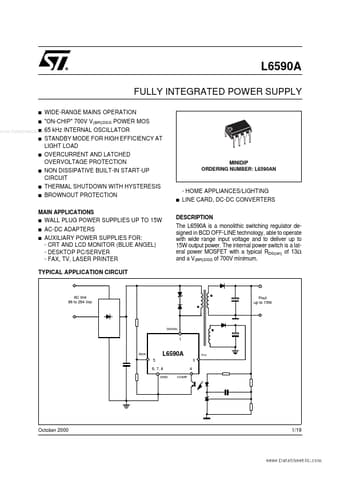

L6590A FULLY INTEGRATED POWER SUPPLY s s WIDE-RANGE MAINS OPERATION "ON-CHIP" 700V V(BR)DSS POWER MOS kHz INTERNAL OSCILLATOR STANDBY MODE FOR HIGH E.

L6590A General Description

The L6590A is a monolithic switching regulator designed in BCD OFF-LINE technology, able to operate with wide range input voltage and to deliver up to 15W output power. The internal power switch is a lateral power MOSFET with a typical RDS(on) of 13Ω and a V(BR)DSS of 700V minimum. AC-DC ADAPTERS A.
