L7905ACV

Negative voltage regulators

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part STMicroelectronics L7905ACV IC REG LINEAR -5V 1.5A TO220 DigiKey 794 5000 units
$0.31

L7905ACV Datasheet (544.28 KB)

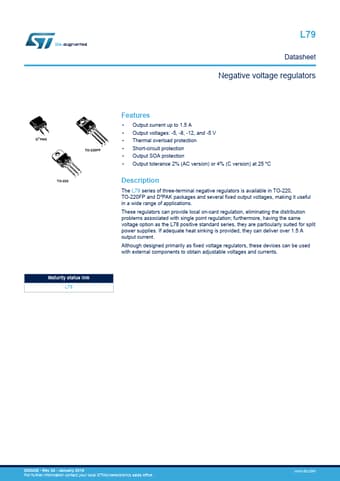

Preview of L7905ACV PDF

Datasheet Details

Part number:

L7905ACV

Manufacturer:

STMicroelectronics ↗

File Size:

544.28 KB

Description:

Negative voltage regulators.

L7905ACV Features

* Output current up to 1.5 A

* Output voltages: -5, -8, -12, and -5 V

* Thermal overload protection

* Short-circuit protection

* Output transition SOA protection

* Output tolerance 2% (AC version) or 4% (C version) at 25 °C Description The L79 series of three-terminal negati

L7905ACV General Description

The L79 series of three-terminal negative regulators is available in TO-220, TO-220FP and D²PAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with s.
