L79L05 - Negative voltage regulators

Product Overview

SYC

L79L05 Negative voltage regulators by SYC - Datasheet Preview — Datasheet preview – L79L05

Datasheet Details

Part number	L79L05
Manufacturer	SYC
File Size	675.72 KB
Description	Negative voltage regulators
Datasheet	L79L05 Datasheet

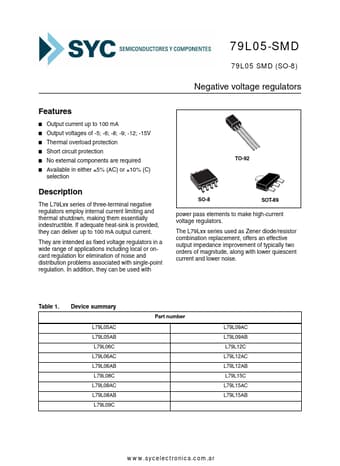

Additional preview pages of the L79L05 datasheet.

Product details

Description

The L79Lxx series of three-terminal negative regulators employ internal current limiting and thermal shutdown, making them essentially indestructible.

Features

Output current up to 100 mA.
Output voltages of -5; -6; -8; -9; -12; -15V.
Thermal overload protection.
Short circuit protection.
No external components are required.
Available in either ±5% (AC) or ±10% (C) selection.
