L79L08AB

Negative voltage regulators

L79L08AB Datasheet (804.00 KB)

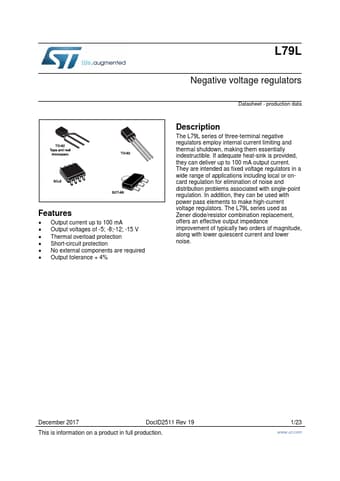

Preview of L79L08AB PDF

Datasheet Details

Part number:

L79L08AB

Manufacturer:

STMicroelectronics ↗

File Size:

804.00 KB

Description:

Negative voltage regulators.

L79L08AB Features

* Output current up to 100 mA

* Output voltages of -5; -8;-12; -15 V

* Thermal overload protection

* Short-circuit protection

* No external components are required

* Output tolerance + 4% L79L Negative voltage regulators Datasheet - production data Description The L79L serie

L79L08AB General Description

The L79L series of three-terminal negative regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of appli.
