L7915C - Negative voltage regulators

Product Overview

STMicroelectronics

Datasheet Details

Part number	L7915C
Manufacturer	STMicroelectronics
File Size	556.26 KB
Description	Negative voltage regulators
Datasheet	L7915C Datasheet
Note	This datasheet PDF includes multiple part numbers: L7915C, L79. Please refer to the document for exact specifications by model.

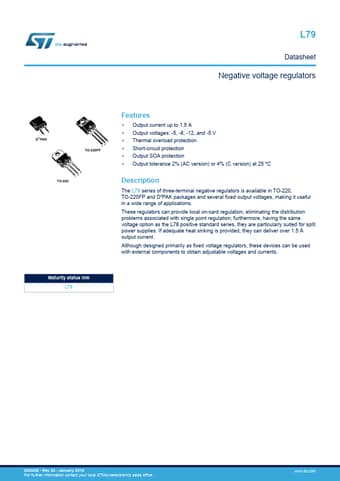

Additional preview pages of the L7915C datasheet.

Product details

Description

The L79 series of three-terminal negative regulators is available in TO-220, TO-220FP and D²PAK packages and several fixed output voltages, making it useful in a wide range of applications.

Features

Output current up to 1.5 A.
Output voltages: -5, -8, -12, and -5 V.
Thermal overload protection.
Short-circuit protection.
Output SOA protection.
Output tolerance 2% (AC version) or 4% (C version) at 25 °C.
