LDK320

200mA high accuracy and high PSRR voltage regulator

LDK320 Features

* Input voltage from 2.5 to 18 V

* Very low-dropout voltage (100 mV typ. @ 100 mA load)

* Low quiescent current (typ. 60 μA, 1 μA in off mode)

* High PSRR: 88 dB @ 120 Hz

* Low noise

* Output voltage tolerance: ± 0.5% @ 25 °C (LDK320A) or ± 2% 25

LDK320 General Description

The LDK320 is a low drop voltage regulator, which provides a maximum output current of 200 mA from an input voltage in the range of 2.5 V to 18 V, with a typical dropout voltage of 100 mV. It is stabilized with a ceramic capacitor on the output. The very good dynamic characteristic, combined with l.

LDK320 Datasheet (965.27 KB)

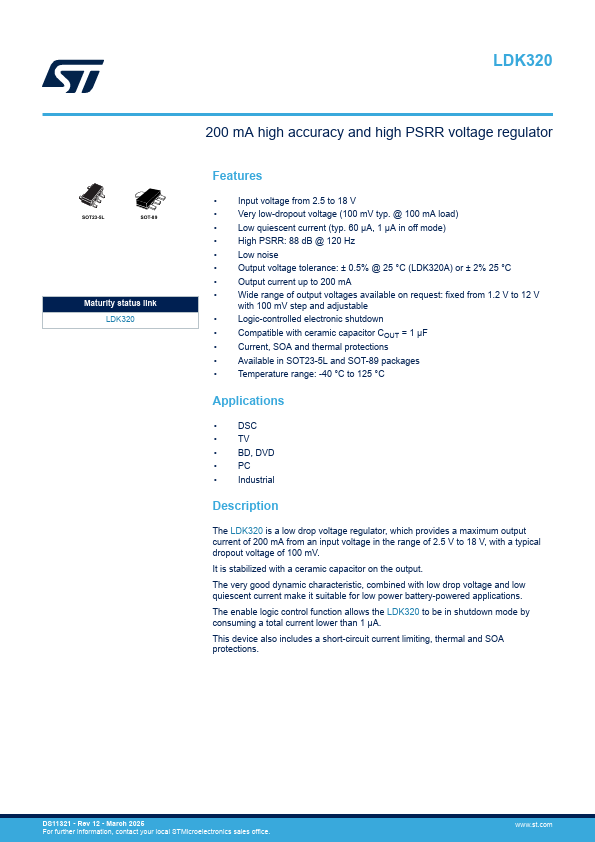

Preview of LDK320 PDF

Datasheet Details

Part number:

LDK320

Manufacturer:

STMicroelectronics ↗

File Size:

965.27 KB

Description:

200ma high accuracy and high psrr voltage regulator.

📁 Related Datasheet

LDK120 200mA low quiescent current very low noise LDO (STMicroelectronics)

LDK130 300mA low quiescent current very low noise LDO (STMicroelectronics)

LDK220 200mA low quiescent current and low noise LDO (STMicroelectronics)

LDK715 High input voltage 85 mA LDO linear regulator (STMicroelectronics)

LD-001 Flat displays (Rohm)

LD-101 Flat displays (Rohm)

LD-1064-FBG-400 Fiber Bragg Grating wavelength locked High Power Laser Diode (Innolume)

LD-1122-FBG-400 Fiber Bragg Grating wavelength locked High Power Laser Diode (Innolume)

LD-160 Single Heterojunction Stacked Diode Lasers (Laser Diode)

LD-160F Single Heterojunction Stacked Diode Lasers (Laser Diode)

TAGS

LDK320 200mA high accuracy and high PSRR voltage regulator STMicroelectronics

Image Gallery

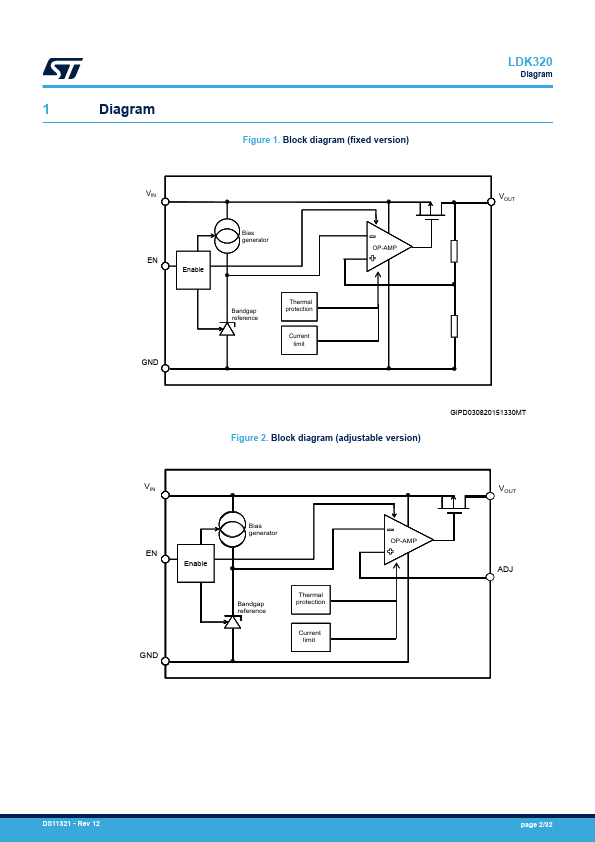

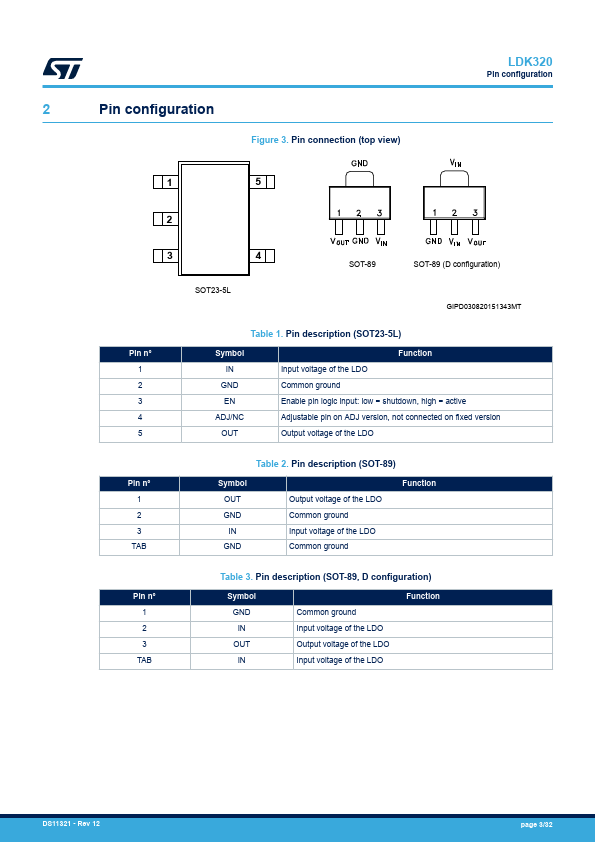

LDK320 Datasheet Preview Page 2 LDK320 Datasheet Preview Page 3
