LDQ40 250mA low-dropout LDO

STMicroelectronics

Description

DFN6 (2 x 2) Wettable Flanks SOT23-5L Maturity status link LDQ40 LDQ40 Datasheet 250 mA low-dropout LDO .
The LDQ40 is a high accuracy voltage regulator, which provides 250 mA of current.

📥 Download Datasheet

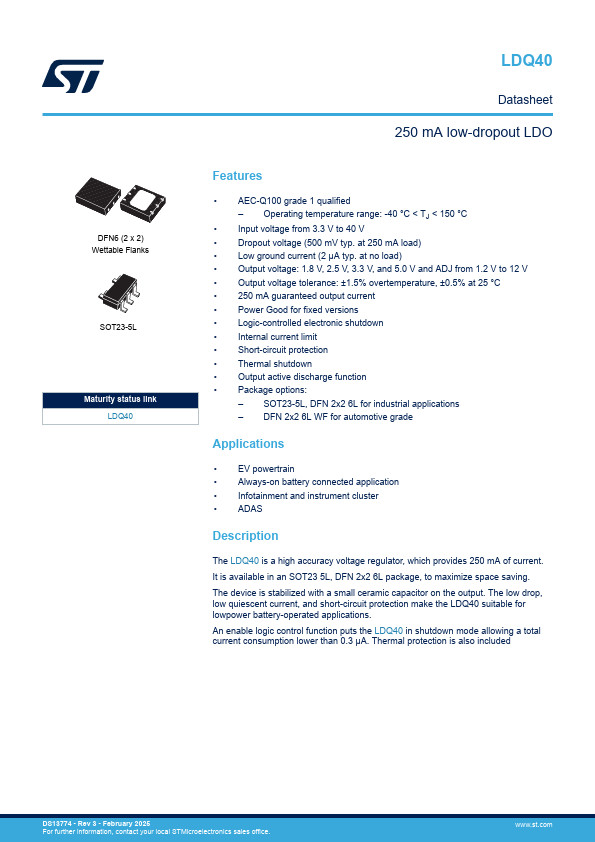

LDQ40 Datasheet Preview — Preview of LDQ40 PDF

Datasheet Specifications

Part number: LDQ40
Manufacturer: STMicroelectronics ↗
File Size: 1.43 MB
Datasheet: LDQ40-STMicroelectronics.pdf
Description: 250mA low-dropout LDO

Features

* AEC-Q100 grade 1 qualified
* Operating temperature range: -40 °C < TJ < 150 °C
* Input voltage from 3.3 V to 40 V
* Dropout voltage (500 mV typ. at 250 mA load)
* Low ground current (2 μA typ. at no load)
* Output voltage: 1.8 V, 2.5 V, 3.3 V, and 5.

Applications

* DFN 2x2 6L WF for automotive grade Applications
* EV powertrain
* Always-on battery connected application
* Infotainment and instrument cluster
