LM2904AH Datasheet - STMicroelectronics

dual operational amplifier

LM2904AH Features

* DFN8 2 x 2 wettable flanks TSSOP8 Maturity status link LM2904H LM2904AH Related products LM2904WH For enhanced ESD performances

* AEC-Q100 qualified

* Frequency compensation implemented internally

* Large DC voltage gain: 100 dB

* Wide bandwidth (unity gain):

LM2904AH General Description

This circuit consists of two independent, high gain operational amplifiers (op amps) that have frequency compensation implemented internally. They are designed specifically for automotive and industrial control systems. The circuit operates from a single power supply over a wide range of voltages. .

LM2904AH Datasheet (851.15 KB)

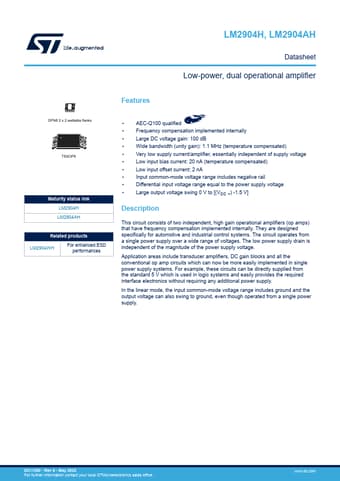

Preview of LM2904AH PDF

Datasheet Details

Part number:

LM2904AH

Manufacturer:

STMicroelectronics ↗

File Size:

851.15 KB

Description:

Dual operational amplifier.
