LM2904H, LM2904AH Datasheet - STMicroelectronics

LM2904H dual operational amplifier

This circuit consists of two independent, high gain operational amplifiers (op amps) that have frequency compensation implemented internally. They are designed specifically for automotive and industrial control systems. The circuit operates from a single power supply over a wide range of voltages. .

LM2904H Features

* DFN8 2 x 2 wettable flanks TSSOP8 Maturity status link LM2904H LM2904AH Related products LM2904WH For enhanced ESD performances

* AEC-Q100 qualified

* Frequency compensation implemented internally

* Large DC voltage gain: 100 dB

* Wide bandwidth (unity gain):

LM2904AH-STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: LM2904H, LM2904AH. Please refer to the document for exact specifications by model.

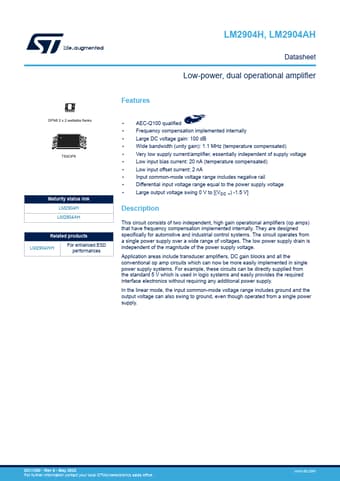

LM2904H Datasheet Preview Page 2 LM2904H Datasheet Preview Page 3

Datasheet Details

Part number:

LM2904H, LM2904AH

Manufacturer:

STMicroelectronics ↗

File Size:

851.15 KB

Description:

Dual operational amplifier.

Note:

This datasheet PDF includes multiple part numbers: LM2904H, LM2904AH.
Please refer to the document for exact specifications by model.
