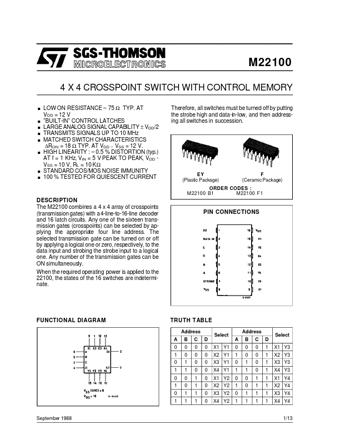

M22100 4 X 4 CROSSPOINT SWITCH

The M22100 combines a 4 x 4 array of crosspoints (transmission gates) with a 4-line-to-16-line decoder and 16 latch circuits. Any one of the sixteen transmission gates (crosspoints) can be selected by applying the appropriate four line address. The selected transmission gate can be turned on or off .

M22100 4 X 4 CROSSPOINT SWITCH WITH CONTROL MEMORY . . . . . . . . LOW ON RESISTANCE 75 Ω TYP. AT VDD = 12 V ”BUILT-IN” CONTROL LATCHES LARGE ANALOG SIGNAL CAPABILITY ± VDD/2 TRANSMITS SIGNALS UP TO 10 MHz MATCHED SWITCH CHARACTERISTICS ∆RON = 18 Ω TYP. AT VDD VSS = 12 V. HIGH LINEARITY : 0.5 % DISTORTION (typ.) AT f = 1 KHz, VIN = 5 V PEAK TO PEAK, VDD VSS = 10 V, RL = 10 KΩ STANDARD COS/MOS NOISE IMMUNITY 100 % TESTED FOR QUIESCENT CURRENT Therefore, all switch.
