M22101 Datasheet - STMicroelectronics

M22101 4 x 4 x 2 CROSSPOINT SWITCHES

The M22101 and M22102 crosspoint switches consist of 4 x 4 x 2 arrays of crosspoints (transmission gates), 4-line to 16-line decoders, and 16 latch circuits. Any one of the sixteen crosspoint pairs can be selected by applying the appropriate four-line address and any number of crosspoint pairs can b.

M22101_STMicroelectronics.pdf

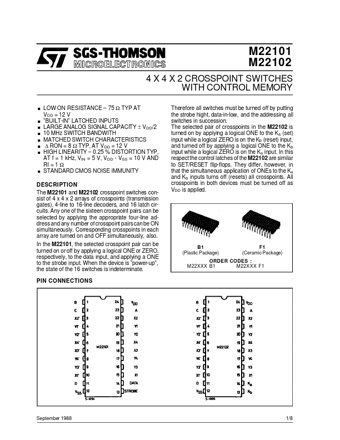

Preview of M22101 PDF
M22101 Datasheet Preview Page 2 M22101 Datasheet Preview Page 3

Datasheet Details

Part number:

M22101

Manufacturer:

STMicroelectronics ↗

File Size:

157.11 KB

Description:

4 x 4 x 2 crosspoint switches.
