M24256

256-Kbit serial I2C bus EEPROM

STMicroelectronics

M24256 Features

* Compatible with following I2C bus modes:

* 1 MHz

* 400 kHz

* 100 kHz

* Memory array:

* 256 Kbit (32 Kbyte) of EEPROM

* Page size: 64 byte

* Additional write lockable page (M24256-D order codes)

* Single supply voltage and high

M24256 General Description

1 Description The M24256 is a 256-Kbit I2C-compatible EEPROM (electrically erasable programmable memory) organized as 32 K × 8 bits. The M24256-BW can operate with a supply voltage from 2.5 V to 5.5 V, the M24256-BR AND M24256-DR can operate with a supply voltage from 1.8 V to 5.5 V, and the M242.

M24256 Datasheet (753.08 KB)

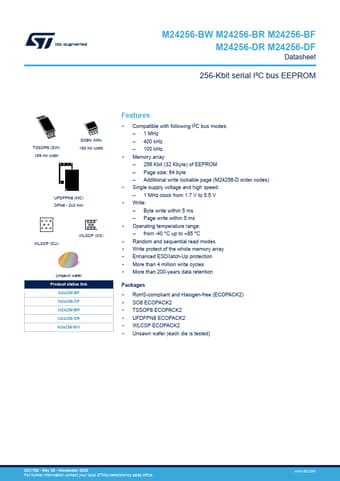

M24256 Datasheet Preview — Preview of M24256 PDF

Datasheet Details

Part number:

M24256

Manufacturer:

STMicroelectronics ↗

File Size:

753.08 KB

Description:

256-kbit serial i2c bus eeprom.
M24256-BW M24256-BR M24256-BF M24256-DR M24256-DF Datasheet 256-Kbit serial I²C bus EEPROM TSSOP8 (DW) 169 mil width SO8N (MN) 150 mil width UFDFPN.
