M24C02, M24C02-WBN6P, I2C Bus EEPROM

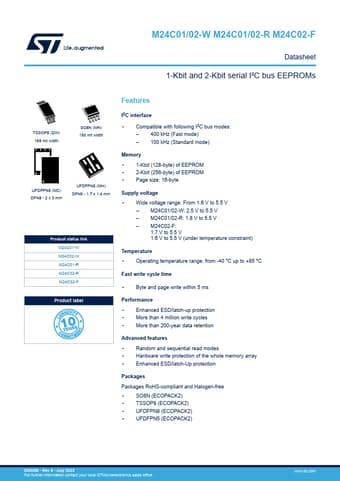

M24C01/02-W M24C01/02-R M24C02-F Datasheet 1-Kbit and 2-Kbit serial I²C bus EEPROMs TSSOP8 (DW) 169 mil width SO8N (MN) 150 mil width UFDFPN8 (MC) .
1 Description The M24C01(C02) is a 1(2)-Kbit I2C-compatible EEPROM (electrically erasable programmable memory) organized as 128 (256) × 8 bits.

M24C02-WBN6P_STMicroelectronics.pdf

M24C02 Datasheet Preview — This datasheet PDF includes multiple part numbers: M24C02, M24C02-WBN6P. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

M24C02, M24C02-WBN6P

Manufacturer:

STMicroelectronics ↗

File Size:

1.51 MB

Description:

I2C Bus EEPROM

Note:

This datasheet PDF includes multiple part numbers: M24C02, M24C02-WBN6P.
Please refer to the document for exact specifications by model.

Features

* I2C interface
* Compatible with following I2C bus modes:
* 400 kHz (Fast mode)
* 100 kHz (Standard mode) Memory
* 1-Kbit (128-byte) of EEPROM
* 2-Kbit (256-byte) of EEPROM
* Page size: 16-byte Supply voltage
* Wide voltage range: From 1.6 V to
