M24C02-W

1-Kbit and 2-Kbit serial I2C bus EEPROMs

M24C02-W Features

* I2C interface

* Compatible with following I2C bus modes:

* 400 kHz (Fast mode)

* 100 kHz (Standard mode) Memory

* 1-Kbit (128-byte) of EEPROM

* 2-Kbit (256-byte) of EEPROM

* Page size: 16-byte Supply voltage

* Wide voltage range: From 1.6 V to

M24C02-W General Description

1 Description The M24C01(C02) is a 1(2)-Kbit I2C-compatible EEPROM (electrically erasable programmable memory) organized as 128 (256) × 8 bits. The M24C01/02-W can be accessed with a supply voltage from 2.5 V to 5.5 V, the M24C01/02-R can be accessed with a supply voltage from 1.8 V to 5.5 V, and.

M24C02-W Datasheet (1.51 MB)

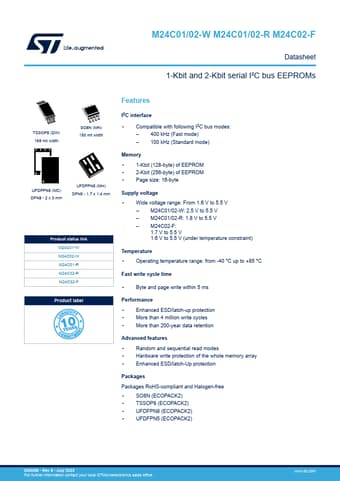

Preview of M24C02-W PDF

Datasheet Details

Part number:

M24C02-W

Manufacturer:

STMicroelectronics ↗

File Size:

1.51 MB

Description:

1-kbit and 2-kbit serial i2c bus eeproms.
M24C01/02-W M24C01/02-R M24C02-F Datasheet 1-Kbit and 2-Kbit serial I²C bus EEPROMs TSSOP8 (DW) 169 mil width SO8N (MN) 150 mil width UFDFPN8 (MC) .
