M2732A, NMOS 32K 4K x 8 UV EPROM

M2732A NMOS 32K (4K x 8) UV EPROM FAST ACCESS TIME: 200ns EXTENDED TEMPERATURE RANGE SINGLE 5V SUPPLY VOLTAGE LOW STANDBY CURRENT: 35mA max INPUTS and.
The M2732A is a 32,768 bit UV erasable and electrically programmable memory EPROM.

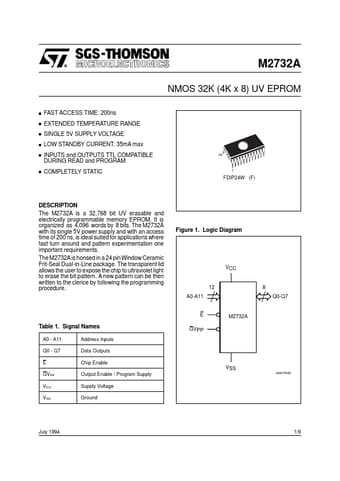

datasheet Preview Page 1 from Datasheet4u.com

M2732A_STMicroelectronics.pdf

M2732A Datasheet Preview — Preview of M2732A PDF

Datasheet Details

Part number:

M2732A

Manufacturer:

STMicroelectronics ↗

File Size:

92.55 KB

Description:

NMOS 32K 4K x 8 UV EPROM

Features

* a 2 line control function which accommodates the use of multiple memory connection. The two line control function allows: a. the lowest possible memory power dissipation, b. complete assurance that output bus contention will not occur. To most efficiently use these two control lines, it is recommend

Applications

* where fast turn around and pattern experimentation one important requirements. The M2732A is honsed in a 24 pin Window Ceramic Frit-Seal Dual-in-Line package. The transparent lid allows the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can be then written to th
