M2764A

NMOS 64K 8K x 8 UV EPROM

M2764A Features

* a 2 line control function which accommodates the use of multiple memory connection. The two line control function allows : a. the lowest possible memory power dissipation, b. complete assurance that output bus contention will not occur. VPP A12 A7 A6 A5 A4 A3 A2 A1 A0 Q0 Q1 Q2 VSS 1 28 2 27 3 26 4

M2764A General Description

The M2764A is a 65,536 bit UV erasable and electrically programmable memory EPROM. It is organized as 8,192 words by 8 bits. The M27C64A is housed in a 28 pin Window Ceramic Frit-Seal Dual-in-Line package. The transparent lid allows the user to expose the chip to ultraviolet light to erase the bit p.

M2764A Datasheet (109.11 KB)

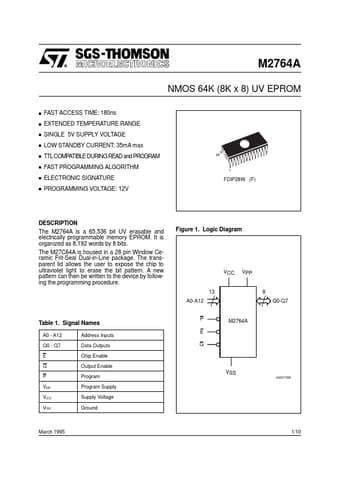

Preview of M2764A PDF

Datasheet Details

Part number:

M2764A

Manufacturer:

STMicroelectronics ↗

File Size:

109.11 KB

Description:

Nmos 64k 8k x 8 uv eprom.
M2764A NMOS 64K (8K x 8) UV EPROM FAST ACCESS TIME: 180ns EXTENDED TEMPERATURE RANGE SINGLE 5V SUPPLY VOLTAGE LOW STANDBY CURRENT: 35mA max TTL COMPAT.
