M27C405 Datasheet - STMicroelectronics

M27C405 - 4 Mbit 512Kb x 8 OTP EPROM

The M27C405 is a 4 Mbit EPROM offered in the OTP (one time programmable) range.

It is ideally suited for microprocessor systems requiring large programs, in the application where the contents is stable and needs to be programmed only one time and is organised as 524,288 by 8 bits.

The M27C405 is pin

M27C405 4 Mbit (512Kb x 8) OTP EPROM 5V ± 10% SUPPLY VOLTAGE in READ OPERATION PIN COMPATIBLE with the 4 Mbit, SINGLE VOLTAGE FLASH MEMORY FAST ACCESS TIME: 70ns LOW POWER CONSUMPTION: Active Current 30mA at 5MHz Standby Current 100µA PROGRAMMING VOLTAGE: 12.75V ± 0.25V PROGRAMMING TIMES Typical 48sec.

(PRESTO II Algorithm) Typical 27sec.

(On-Board Programming) ELECTRONIC SIGNATURE Manufacturer Code: 20h Device Code: B4 32 1 PDIP32 (

M27C405 Features

* a 2 line control function which accommodates the use of multiple memory connection. The two line control function allows: a. the lowest possible memory power dissipation, b. complete assurance that output bus contention will not occur. For the most efficientuse of thesetwo controllines, E should be

M27C405_STMicroelectronics.pdf

Preview of M27C405 PDF

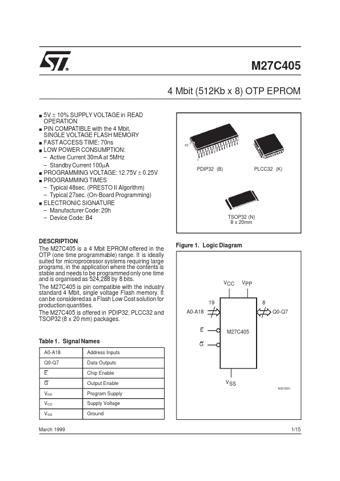

M27C405 Datasheet Preview Page 2 M27C405 Datasheet Preview Page 3

Datasheet Details

Part number:

M27C405

Manufacturer:

STMicroelectronics ↗

File Size:

99.36 KB

Description:

4 mbit 512kb x 8 otp eprom.
