M27C452CZ - MSM27C452CZ

Description

The MSM27C452CZ is a 4Mbit electrically Programmable Read-Only Memory with page mode.

Its configuration can be electrically switched between 262,144 word x 16bit and 524,288 word x 8bit.

The MSM27C452CZ operates on a single +5V power supply and is TTL compatible.

Features

  • 262,144 word x 16bit / 524,288 word x 8bit electrically switchable configuration.
  • Single +5V power supply.
  • Access time 80ns Page mode access time 50ns.
  • Input / Output TTL compatible.
  • Three-state output.
  • Packages 40-pin plastic DIP (DIP40-P-600-2.54) 40-pin plastic SOP (SOP40-P-525-1.27-K) 44-pin plastic TSOP (TSOP II 44-P-400-0.80-K) 1 www. DataSheet4U. com MSM27C452CZ PIN.

📥 Download Datasheet

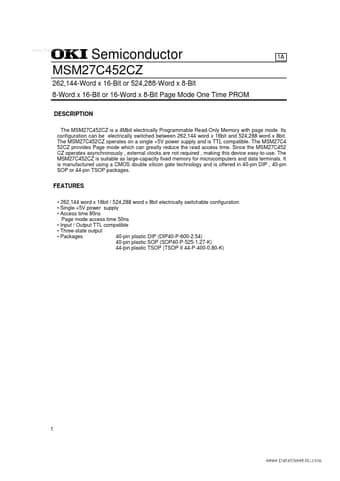

Datasheet preview – M27C452CZ

Datasheet Details

Part number M27C452CZ
Manufacturer OKI
File Size 132.46 KB
Description MSM27C452CZ
Datasheet download datasheet M27C452CZ Datasheet
Additional preview pages of the M27C452CZ datasheet.

📁 Similar Datasheet

  • M27C400 - 4 Mbit 512Kb x8 or 256Kb x16 UV EPROM and OTP EPROM (STMicroelectronics)
  • M27C4001 - 4 Mbit (512Kb x 8) UV EPROM and OTP EPROM (STMicroelectronics)
  • M27C4002 - 4 Mbit (256Kb x16) UV EPROM and OTP EPROM (STMicroelectronics)
  • M27C405 - 4 Mbit 512Kb x 8 OTP EPROM (STMicroelectronics)
  • M27C1001 - 1 Mbit (128 Kbit x 8) UV EPROM and OTP EPROM (STMicroelectronics)
  • M27C1024 - 1 Mbit 64Kb x16 UV EPROM and OTP EPROM (STMicroelectronics)
  • M27C128 - 128K CHMOS Production and UV EPROM (Intel)
  • M27C160 - 16 Mbit 2Mb x8 or 1Mb x16 UV EPROM and OTP EPROM (STMicroelectronics)
  • M27C2001 - 2 Mbit (256Kb x 8) UV EPROM and OTP EPROM (STMicroelectronics)
  • M27C202 - 2 Mbit 128Kb x16 UV EPROM and OTP EPROM (STMicroelectronics)
Other Datasheets by OKI

    Full PDF Text Transcription

    Click to expand full text
    www.DataSheet4U.com ¡ Semiconductor MSM27C452CZ 262,144-Word x 16-Bit or 524,288-Word x 8-Bit 8-Word x 16-Bit or 16-Word x 8-Bit Page Mode One Time PROM DESCRIPTION 1A The MSM27C452CZ is a 4Mbit electrically Programmable Read-Only Memory with page mode. Its configuration can be electrically switched between 262,144 word x 16bit and 524,288 word x 8bit. The MSM27C452CZ operates on a single +5V power supply and is TTL compatible. The MSM27C4 52CZ provides Page mode which can greatly reduce the read access time. Since the MSM27C452 CZ operates asynchronously , external clocks are not required , making this device easy-to-use. The MSM27C452CZ is suitable as large-capacity fixed memory for microcomputers and data terminals.
