M27V256, 256 Kbit 32Kb x 8 Low Voltage UV EPROM and OTP EPROM

M27V256 256 Kbit (32Kb x 8) Low Voltage UV EPROM and OTP EPROM s LOW VOLTAGE READ OPERATION: 3V to 3.6V FAST ACCESS TIME: 90ns LOW POWER CONSUMPTION:.
The M27V256 is a low voltage 256 Kbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable).

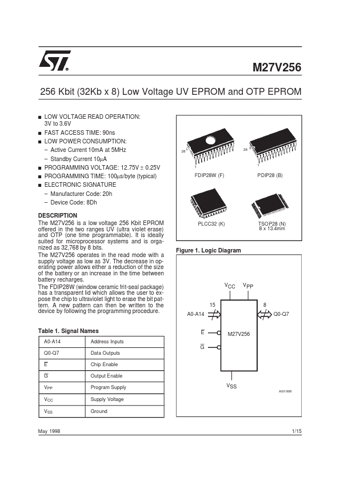

datasheet Preview Page 1 from Datasheet4u.com

M27V256_STMicroelectronics.pdf

M27V256 Datasheet Preview — Preview of M27V256 PDF

Datasheet Details

Part number:

M27V256

Manufacturer:

STMicroelectronics ↗

File Size:

103.76 KB

Description:

256 Kbit 32Kb x 8 Low Voltage UV EPROM and OTP EPROM

Features

* a 2 line control function which accommodates the use of multiple memory connection. The two line control function allows: a. the lowest possible memory power dissipation, b. complete assurance that output bus contention will not occur. For the most efficient use of these two control lines, E should

Applications

* where the content is programmed only one time and erasure is not required, the M27V256 is offered in PDIP28, PLCC32 and TSOP28 (8 x 13.4 mm) packages. A10 E Q7 Q6 Q5 Q4 Q3 VSS Q2 Q1 Q0 A0 A1 A2 G A11 A9 A8 A13 A14 VCC VPP A12 A7 A6 A5 A4 A3 22 21 28 1 M27V256 15 14 7 8 AI01911 DEVICE OPERAT
