M27V322

32 Mbit 2Mb x16 Low Voltage UV EPROM and OTP EPROM

M27V322 Features

* a 2 line control function which accommodates the use of multiple memory connection. The two line control function allows: a. the lowest possible memory power dissipation, b. complete assurance that output bus contention will not occur. For the most efficient use of these two control lines, E should

M27V322 General Description

The M27V322 is a 32 Mbit EPROM offered in the UV range (ultra violet erase) and OTP range. It is ideally suited for microprocessor systems requiring large data or program storage. It is organised as 2 MWords of 16 bit. The pin-out is compatible with a 32 Mbit Mask ROM. The FDIP42W (window ceramic fr.

M27V322 Datasheet (112.76 KB)

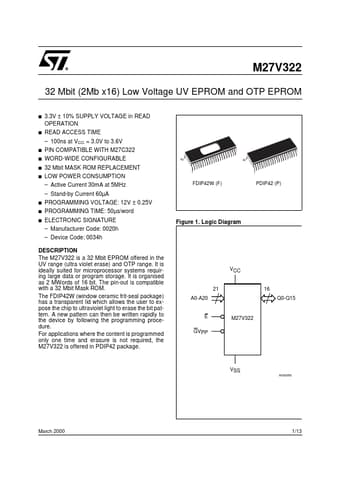

Preview of M27V322 PDF

Datasheet Details

Part number:

M27V322

Manufacturer:

STMicroelectronics ↗

File Size:

112.76 KB

Description:

32 mbit 2mb x16 low voltage uv eprom and otp eprom.
M27V322 32 Mbit (2Mb x16) Low Voltage UV EPROM and OTP EPROM s 3.3V ± 10% SUPPLY VOLTAGE in READ OPERATION READ ACCESS TIME

* 100ns at VCC = .
